New 12MP HD720P 2.7' TFT digital trail camera with 3PIR IR sensor,with Gravity-sensor & Blue backlight bgh0040 manufacturer from China BIG5-CHINA LTD

Place of Origin:

Guangdong, China (Mainland)

Product Detail

Model No.: bgh0040

Hunting Camera, Trail Camera, Scouting Camera, Ltl acorn, Ltl-6210M,Ltl-5210M,kg680v,sg550M,sg880mk hunting camera, Game camera, Wildlife Camera

Feature:

1. Simple to use

2. Supports up to 32 GB SD Card

3. Long-lasting battery life to 6 months

4. 8 x AA batteries

5. 12MP resolution

6. 2.7'' TFT LCD Display

7. Led indicator when low battery and full memory SD card

8. Audio on Video: Yes

9. Gravity sensor function for picture position on TFT

10. Blue backlight for keypad: It is convenient for you to operate at night or insufficient light

11.A laser pointer is used to help target the photo area of the camera

Laser light: aim the target (test mode)

RGB LED: Red LED indicate the battery went dead (on mode)

Green LED indicate memory SD card is full (on mode)

Blue LED indicate PIR induct the target (test mode), we need

close the blue LED in "on mode" in case of spooking the

target.

LDR: It switches the camera back and forth from day pictures (color) to night pictures (monochromatic).

Specifications:

Model	Parameters
Image Sensor	5 /8 / 10 / 12 Mega pixel Color CMOS
Picture Resolution	25921944 5M 32642448 8M 34562592 10M 30004000 12M
lens	F=3.1 FOV(Field of View)=53°C
IR flash	65 feet/20m
LCD Screen	2.7'' TFT

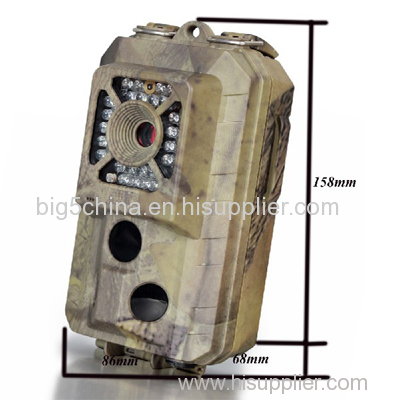

Dimensions	1588668mm(6.2 x 3.4x 2.7 inches)
Weight	0.6KG
Operation Keypad	17keys
Memory SD card	up to 32G
Video Resolution	HD 1280x720p 30fps, VGA 30fps 640 640x 480 320 320x 240
Video length	15sec/30sec/60sec/120sec (Adjustable)
Camera+video	first take picture then video
Playback Zoom in/out	1-4 Times
PIR sensitivity	High/Normal/Low(Adjustable)
PIR Sensing Distance	65ft/20m
PIR Sensor	Multi Zone
Prep PIR Sensing Angle	Left and right light beams form an angle of 120°
Main PIR Sensing Angle	60°
Operation Mode	Day/Night
Auto Power Off	Auto Power Off in 3minutes while no keypad controlling
Trigger time	1.0s
Delay time	1sec.-2h. programmable
Time Lapse	on/off; 1 Second~24 Hours Programmable
low battery and full memory SD card Alert	LED indicator
Sound Recording	Available
Timer	on/off; Programmable
Timer stamp	Date, time , serial no, temperature, moon phase
password	4-Digit and 26 alphabets set by yourself
Device Serial No	4 digits
power supply	8 x AA batteries
External DC Power Supply	6V
stand-by current	0.2MA
stand-by Time	6 months
Interface	TV-OUT(NTSC/PAL), MINI USB, SD CARD Slot, 6V DC, SIM CARD Slot.
Mounting	Strap or Tripod Nail
Waterproof	IP54
Operation Temperature	-22°F to 158°F(-30°C to 70°C)
Operation Humidity	5%----95%
Certificate	FCC & CE & ROHS
